MDM Savers Series
Micro-D Savers Connectors

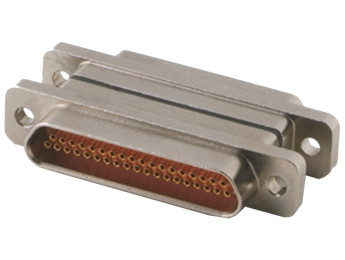

Image shown represents the product series and may not indicate the actual part number
Toolbox
Downloads
Features and Benefits
- Twist pin contacts technology
- Flight and Engineering models available
- Sizes 9, 15, 21, 25, 31, 37 and 51
- Non removable signal contact (installed in factory)
- Same savers for MDM and MDMA connectors
- Non-outgassing
Typical Applications
- Space equipements
- Satellites harnesses and payloads
- Launchers
- Engineering
- Military and Avionics
Associated Products
Specifications
-
Working Voltage:
150 Vrms at sea level
-
Rated current:
2.5 A
-
Contact resistance (rated current):
10.0 milliohms max
-
Insulation resistance (500 VDC):
5000 megohms min
-
Voltage proof:
600 Vrms / 2.0 mA leakage current
-
temperature range:
-55°C to 125°C
-
Shell Finish:
Electroless nickel over copper underlay
= Most Common
| Part Number |
|---|
| Description | Quality Level | Number of Contacts |
|---|---|---|
| MDM-115288-8147-A174-FR022 | Engineering model | 51 |
| 340104101B 9PS | ESCC certified | 9 |
| 340104102B 15PS | ESCC certified | 15 |
| 340104103B 21PS | ESCC certified | 21 |
| 340104104B 25PS | ESCC certified | 25 |
| 340104105B 31PS | ESCC certified | 31 |
| 340104106B 37PS | ESCC certified | 37 |
| 340104107B 51PS | ESCC certified | 51 |
| MDM-115288-8141-A174-FR022 | Engineering model | 9 |
| MDM-115288-8142-A174-FR022 | Engineering model | 15 |
| MDM-115288-8143-A174-FR022 | Engineering model | 21 |
| MDM-115288-8144-A174-FR022 | Engineering model | 25 |
| MDM-115288-8145-A174-FR022 | Engineering model | 31 |
| MDM-115288-8146-A174-FR022 | Engineering model | 37 |
