Tactile

KXT2 Series

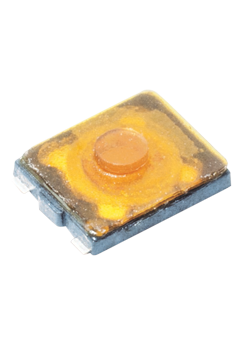

img description

Image shown represents the product series and may not indicate the actual part number

Features and Benefits

  • Double action
  • 3.7 x 3.0 mm footprint
  • Distinctive tactile feeling between the first and second actuation

Typical Applications

  • Personal healthcare monitoring system
  • Action camera
  • Wearable electronics

Specifications

  • Contact resistance:

    < 500 milliohms

  • Solderability:

    This component is suited to the following methods: Infrared Reflow Soldering in accordance with IEC61760-1

  • Electrical Life:

    100,000 cycles

  • Insulation Resistance:

    > 100 megohms

  • Dielectric Strength:

    250 Vrms (1mn)

  • Operating Temperature:

    -40°C to +85°C

  • Contact Rating:

    50 mA

= Most Common

Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Actuator Type Actuator Height off PCB, from Pins Actuator Orientation Termination Style Footprint Illumination Voltage (Nominal) Illumination Type, Color Operating Force Additional Features Packaging
50mA @ 12VDC SPST double action-NO Surface Mount Sealed - IP40 None Off-Mom 100,000 Standard Top Actuated SMT 3.7mm x 3.0mm
L
100gf / 200gf Tape & Reel
