AeroSplice Series
AeroSplice

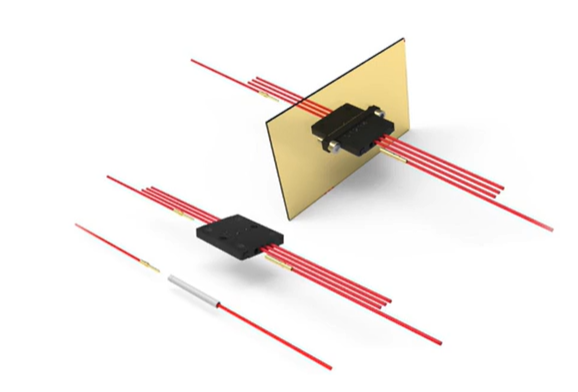

Image shown represents the product series and may not indicate the actual part number
Toolbox
Downloads
Features and Benefits
- One way or 4 ways connectors
- Wire to wire connection
- Using D*MA crimpable contacts technology
- According to MIL M24308
- Replacement of manual splices by standard solution
- Supplied without contacts
- Non-outgassing
Typical Applications
- Aerospace equipements
- Harnesses
- Engineering
- Military and Avionics
Specifications
-
Working Voltage - 1 way:
300 Vrms at sea level
-
Working Voltage - 4 ways:
250 Vrms at sea level
-
Rated current Contact Standard Density size 20/20:
7.5 A
-
Rated current Contact Standard Density size 20/26:
3.0 A
-
Contact resistance (rated current):
5.0 mΩ max
-
Insulation resistance (500 VDC):
5000 MΩ min
-
Voltage proof - 1 way:
1250 Vrms / 2.0 mA leakage current
-
temperature range:
-55°C to 125°C
-
residual magnetism level:
200 Gamma (NMB)
= Most Common
- Description
- Quality Level
- Variant
- Application
- Head Type
- Shell Size
- Number of Contacts
- Contacts Arrangement
- Contact Type
- Contact Size
- Wire Type or Size
- Outlet
- Weight Variant
- Backshell and Haloring Variant
- Fixing Option
- Bracket
- Termination Type
- Termination Diameter
- Termination Distance Between Two Rows
- Foot Print
- Contact Delivered
- Material
- Shell Finish
- Finish
| Part Number |
|---|
| Description | Quality Level | Variant | Application | Head Type | Shell Size | Number of Contacts | Contacts Arrangement | Contact Type | Contact Size | Wire Type or Size | Outlet | Weight Variant | Backshell and Haloring Variant | Fixing Option | Bracket | Termination Type | Termination Diameter | Termination Distance Between Two Rows | Foot Print | Contact Delivered | Material | Shell Finish | Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AEROSPLICE-1W-FR059 | MIL-M24308 | N/A | N/A | N/A | N/A | 1 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | PEEK | N/A | N/A |
| AEROSPLICE-4W-R-FR059 | MIL-M24308 | N/A | N/A | N/A | N/A | 4 | 1 Row | N/A | N/A | N/A | N/A | N/A | N/A | Radial | N/A | N/A | N/A | N/A | N/A | N/A | PEEK | N/A | N/A |
| AEROSPLICE-4W-A- FR059 | MIL-M24308 | N/A | N/A | N/A | N/A | 4 | 1 Row | N/A | N/A | N/A | N/A | N/A | N/A | Axial | N/A | N/A | N/A | N/A | N/A | N/A | PEEK | N/A | N/A |
