ATPS22SL5612M4SA04G
Atps220 Series
Anti-Vandal Short Body Sealed Pushbutton Switch

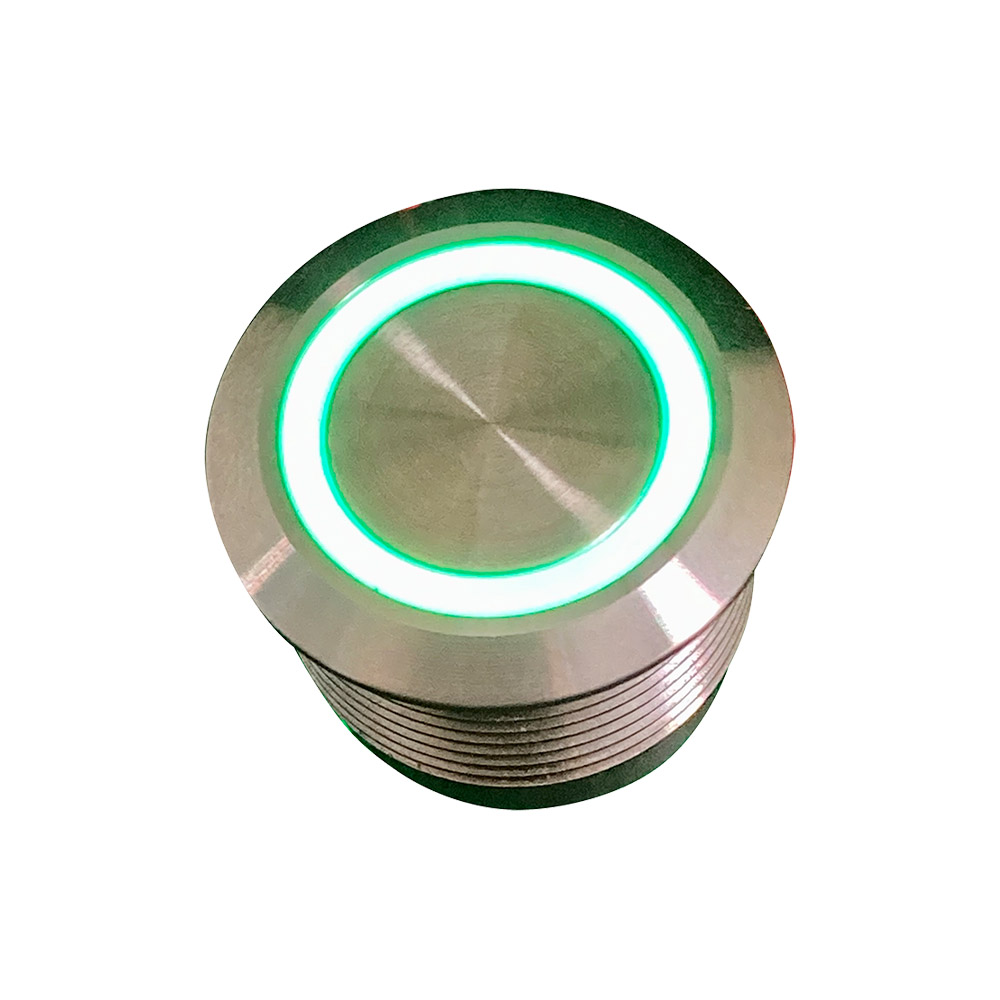

Image shown represents the product series and may not indicate the actual part number
Toolbox
Downloads
The ATPS22 series anti-vandal short body sealed pushbutton switch is designed to withstand deliberate damage and vandalism, which in turn can reduce the need for costly in-field repairs and product recalls. Besides being vandal proof, the new pushbutton switches share many characteristics of other ATP pushbuttons in the range, including being lightweight, IP67-rated and corrosion resistant. As the devices integrating this switch are often outdoors, the ATPS22 pushbutton has been designed to withstand extreme environmental conditions and water exposure.
Features and Benefits
- IP67 sealed to endure harsh environments
- Light weight & high strength
- Snap-action provide positive feedback
- 1,000,000 life cycle
Typical Applications
- Alarm, safety & security systems
- Access control, door intercoms
- Service station equipment
- Elevator/ Escalator
- Transportation controls
Specifications
-
Contact Rating:
Silver Alloy plated
-
Operating Life:
200,000 cycles
-
Insulation Resistance:
1 gigohms @ 500 VDC
-
Dielectric Strength:
2000V RMS @ sea level
-
Operating Temperature:
-20°C to +70°C
-
Contact Resistance:
50 milliohms max @ 1A 12VDC initial
ATPS22SL5612M4SA04G
-
Most Common:
No
-
Current Rating:
2A
-
Circuit:
SPST
-
Mounting Type:
Panel Mount, Front, Threaded
-
Sealing:
Sealed - IP67
-
Illumination:
Yes
-
Switch Function:
Momentary
-
Electrical Life Cycles:
200,000
- Voltage Rating - AC:
-
Voltage Rating - DC:
12V
-
Actuator Type:
Standard
-
Color - Actuator/Cap:
Translucent
-
Illumination Type, Color:
Green
-
Illumination Voltage (Nominal):
12
-
Termination Style:
Solder lug
-
Additional Features:
Wire lead termination-500mm
-
Panel Cutout Dimensions:
Circular DD shape - 22mm Dia
-
Packaging:
Box
