RKA2SGS055SMTR LFS
Rk0 Series
Microminiature SMT Top Actuated Tact Switch

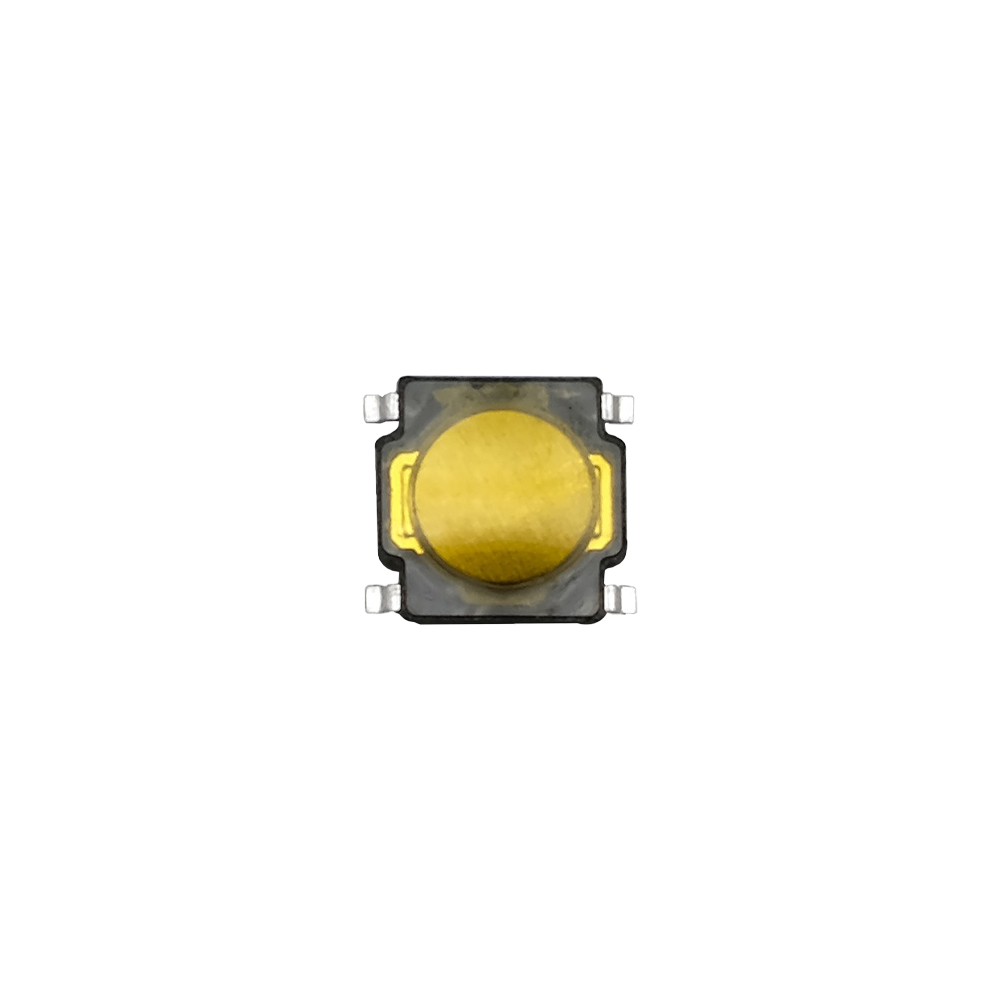

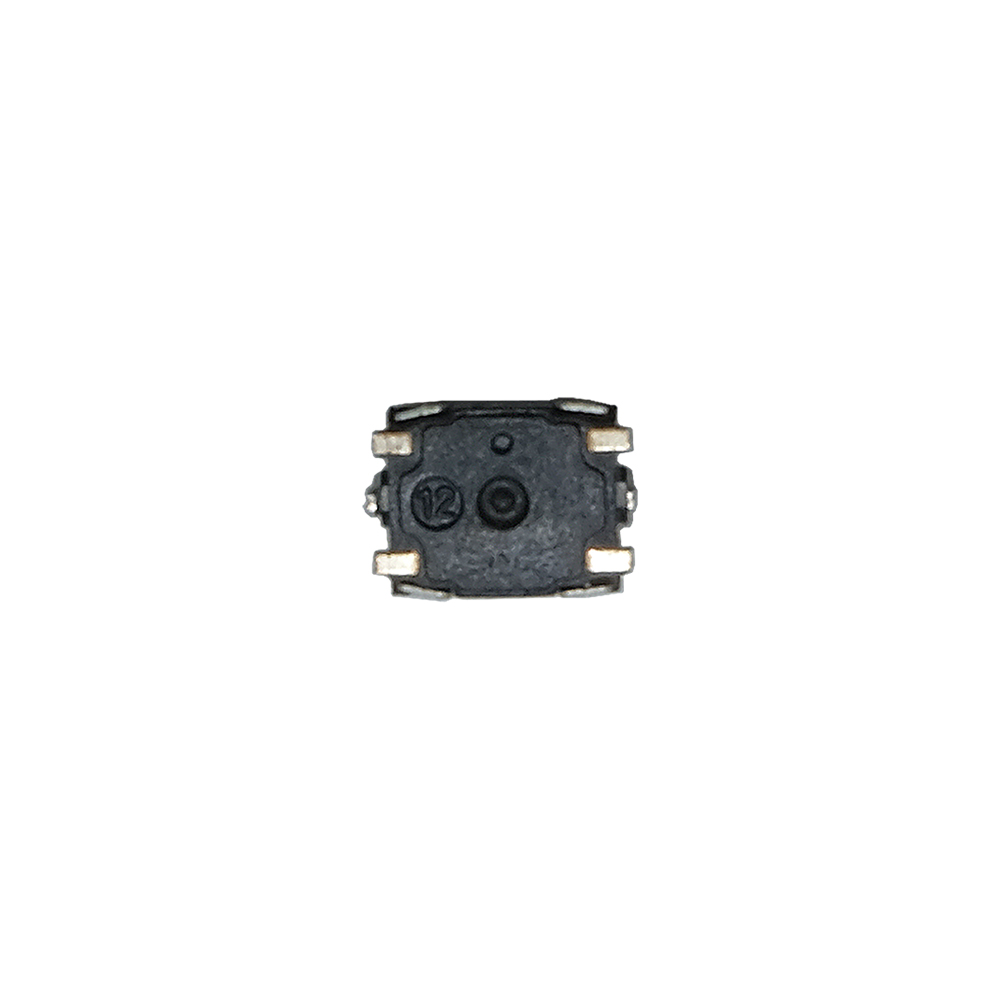

Image shown represents the product series and may not indicate the actual part number
Toolbox
Downloads
RK series is low profile microminiature SMT top actuated tact switch with different choices of actuation force and long life cycle. The switch is ideal for applications that need a high density of components in limited PCB space, such as automotive keyfob, navigation and health & medical devices. The compact top-actuated RK series comes in various product sizes (RKA2: 4.5 x 4.5 x 0.55 mm, RKB2: 4.2 x 3.2 x 2.5 mm, RKC: 3.5 x 2.6 x 1.4 mm). The RK series is available in 6 actuation forces, allowing customers easily integrate into different designs.
Features and Benefits
- Low profile & microminiature package
- SMT termination
- Hard actuator
- 160, 180, 250, 400, 450 & 540 gf
- 50k to 500k life cycles
Typical Applications
- Keyfob
- Navigation
- Health monitoring
Specifications
-
Operating Temperature:
RKA2 & RKC: -40 to 85°C; RKB2: -40 to 90°C
-
Contact Resistance:
RKA2: 200mΩ max.; RKB2 & RKC: 100mΩ max.
-
Solderability:
Lead free reflow soldering process according with IEC61760-1
-
Contact Rating:
RKA2: DC 15V 20 mA max.; RKB2 & RKC: DC 12V 50 mA max.
-
Electrical Life:
50,000 to 500,000 cycles depending on model
-
Insulation Resistance:
RKA2: 50MΩ min.; RKB2 & RKC: 100MΩ min
-
Dielectric Strength:
Withstand voltage of AC250V (50 60HZ), 10mA for 60 ± 5s
RKA2SGS055SMTR LFS
-
Most Common:
No
-
Current Rating:
DC 15V 20 mA max.
-
Circuit:
SPST-NO
-
Mounting Type:
Surface Mount
-
Sealing:
Unsealed
-
Illumination:
No/None
-
Switch Function:
Off-Mom
- Electrical Life Cycles:
-
Actuator Type:
Hard
-
Actuator Height off PCB, from Pins:
0.55mm
-
Actuator Orientation:
Top Actuated
-
Termination Style:
Gull Wing
-
Footprint:
4.5 x 4.5mm
- Illumination Voltage (Nominal):
- Illumination Type, Color:
-
Operating Force:
540gf
- Additional Features:
-
Packaging:
Tape & Reel
