ILT03
Ilt0 Series
Illuminated Toggle Switch

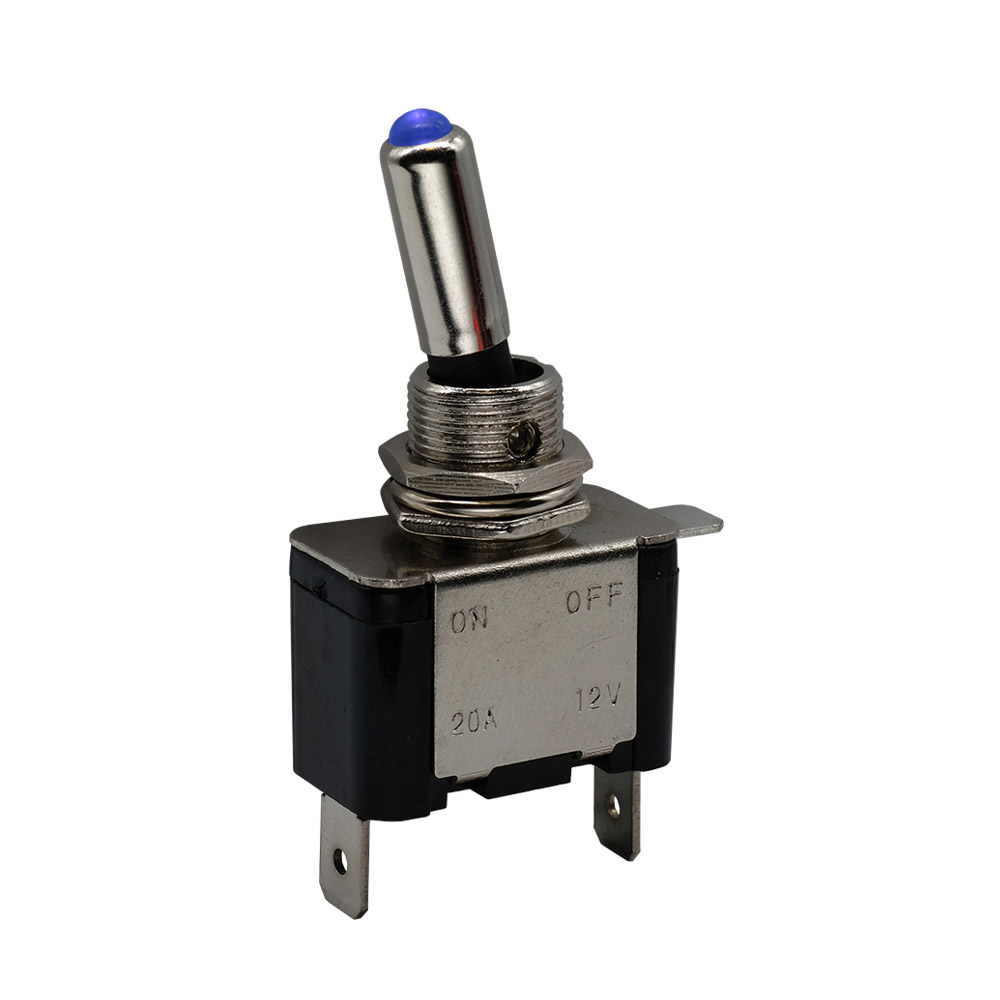

Image shown represents the product series and may not indicate the actual part number
Toolbox
Downloads
The ILT series is a LED illuminated, 20 Amp toggle that features a metal bushing for harsh environment applications, while most competing illuminated toggle switches use plastic bushings. The ILT series is ideal for a wide range of standard and harsh environment applications including control panels, heavy equipment, industrial instruments, instrumentation, LED lights, lifts & escalators, medical & equipment, security system, telecommunication systems and more.
Features and Benefits
- LED built in to toggle handle
- 6 LED color options to choose from
- Electrical ratings up to 20 Amps
- 6.3 quick connect terminals
- Easy installation - no soldering required
Typical Applications
- Instrumentation
- Medical equipment
- Detection
- Control panels
- Heavy equipment
- Industrial instruments
- Security system
Specifications
-
Contact Rating:
20A
-
Electrical Life:
10,000
-
Insulation Resistance:
500V DC 1000M ohms min
-
Dielectric Strength:
1 minute 1500V AC
-
Operating Temperature:
-25°C to +85°C
-
Contact Resistance:
50m ohms max
ILT03
-
Most Common:
No
-
Current Rating:
20A (AC/DC)
-
Circuit:
SPST
-
Mounting Type:
Panel Mount, Rear, Threaded
-
Sealing:
Unsealed
-
Illumination:
Yes
-
Switch Function:
On-Off
-
Electrical Life Cycles:
10,000
- Voltage Rating - AC:
-
Voltage Rating - DC:
12V
-
Actuator Type:
Toggle
-
Actuator Length:
19.9mm
-
Termination Style:
QC
-
Bushing Thread:
M12 X 0.75
- Additional Features:
-
Panel Cutout Dimensions:
Circular -12.2mm Dia
-
Packaging:
Tray
